Naphthalene Profile

Naphthalene Profile

General Information

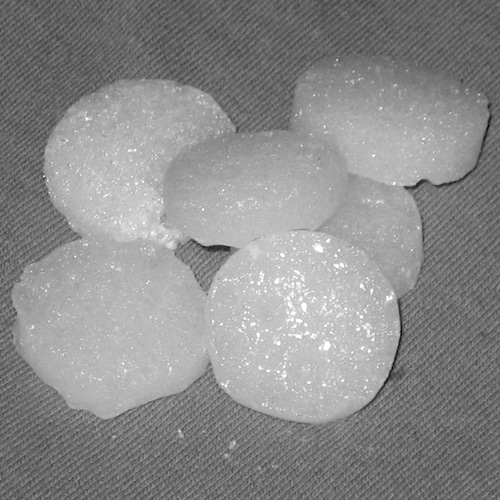

Naphthalene, a polycyclic aromatic hydrocarbon, may exist as white crystalline plates, balls, or powder, and has a distinctive mothball odour.[1] Naphthalene occurs naturally in fossil fuels and is a combustion product of organic material. It has several industrial uses, primarily as a chemical intermediate.[1]

Naphthalene may also be referred to as naphthalin or white tar.[1] There are numerous other synonyms and product names; see Hazardous Substances Data Bank (HSDB) for more information.[2]

Other substances related to naphthalene that are considered by CAREX Canada include polycyclic aromatic hydrocarbons (PAHs)coal-tar and coal-tar pitches, and creosotes; please consult these profiles for further information.

In 2002, the International Agency for Research on Cancer (IARC) classified naphthalene as Group 2B, possibly carcinogenic to humans.[1] The epidemiological studies available were not adequate to provide evidence of carcinogenicity in humans, however animal studies showed increased rates of nasal/olfactory and respiratory tumours in rats and mice exposed to naphthalene.[1,3]

Other adverse health effects which may result from acute exposure to naphthalene include hemolytic anemia, liver and neurological damage, gastrointestinal upset, respiratory effects, and dermatitis.[2,4] Chronic high exposure may cause neuropathy, retinal damage, renal failure, and liver necrosis.[2]

Regulations and Guidelines

Occupational Exposure Limits (OEL) [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19]

Canadian Jurisdictions OEL (ppm)
Canada Labour Code 10 [sk]
MB, NL, NS, PE, 10 [sk]
AB, BC, NB, NT, NU, ON, SK 10 [sk]
15 [stel]
QC, YT 10
15 [stel]
Other Jurisdictions OEL (ppm)
ACGIH 2018 TLV 10 [sk]
ppm = parts per million
sk = easily absorbed through the skin
stel = short term exposure limit (15 min. maximum)
ACGIH = American Conference of Governmental Industrial Hygienists
TLV = threshold limit value

Environmental Guidelines

Jurisdiction Limit Year
Health Canada Cosmetics Ingredient Hotlist Prohibited 2014[20]
Residential Indoor Air Quality Guidelines 24 hour limit: 10 μg/m3 2006[21]
Ontario Ambient Air Quality Criteria 10 minute: 50 µg/m3
24 hour: 100 µg/m3
2016[22]
Alberta Ambient Air Quality Objectives and Guidelines Annual: 3 μg/m3 2017[23]
BC’s Contaminated Sites Regulation, BC Reg 375/96 Sets soil standards for the protection of human health:
Agricultural and low density residential sites: 850 μg/g
Urban park and high density residential sites: 1500 μg/g
Commercial sites: 5,000 μg/g
Industrial sites: 150,000 μg/g



Sets vapour standards for the protection of human health:
Agricultural, urban park, residential use standard: 3 μg/m3
Commercial use standard: 9 μg/m3
Industrial use standard: 25 μg/m3
Parkade use standard: 25 μg/m3
(Vapours derived from soil, sediment, or water)

2017[24]
µg/m3 = micrograms per cubic meter
µg/g = micrograms per gram

Naphthalene was not included in other Canadian environmental guidelines reviewed.[25,26,27,28]

Canadian Agencies/Organizations

Agency Designation/Position Year
Health Canada DSL – high priority substance with the greatest potential for exposure 2006[29]
PMRA List of Formulants List 2: potentially toxic formulant 2018[30]
CEPA Schedule 1 2011[31]
CMP Challenge Batch 1 [Health] 2007[32]
National Classification System for Contaminated Sites Rank = “Medium hazard” 2008[33]
Agreement Respecting the Great Lakes Basin Ecosystem Listed as a “Hazardous Polluting Substance” 1987[34]
Environment Canada’s National Pollutant Release Inventory Reportable to NPRI if manufactured, processed, or otherwise used at quantities greater than: 10 tonnes 2016[35]
DSL = domestic substance list
PMRA = Pest Management Regulatory Agency
CEPA = Canadian Environmental Protection Act
CMP = Chemical Management Plan

Main Uses

Naphthalene is primarily used to produce phthalic anhydride, which is an intermediate chemical in the manufacture of polyvinyl chloride plasticizers, pharmaceuticals, insect repellents, and other materials.[1,3] Naphthalene also acts as a solvent and is used to produce automobile paint, driveway sealants, various chemicals in the dye and synthetic leather tanning industries, surfactants, veterinary medicines, lubricants, motor fuels, and toilet deodorizers.[1,3]

Until recently, naphthalene was widely used as a moth and insect repellent. This use has been decreasing since chlorinated compounds were introduced.[1] As of 2016, four products containing naphthalene as the active ingredient were registered with the Pest Management Regulatory Agency (PMRA) for use in Canada. Of these, three are moth repellents.[36] Naphthalene may also be found in commercially available consumer products such as paints, stains, and coatings.[32] In Canada, naphthalene is also used as an oilfield chemical, solvent, refinery cleaner, fuel additive, and feedstock in the petroleum industry.[32]

Canadian Production and Trade

Naphthalene is primarily produced from coal tar, but can also be produced from petroleum.[1] Coal tar and petroleum contain up to 11% and 1.3% of naphthalene, respectively.[1]

No recent data on naphthalene manufacture in Canada was found.

Production and Trade

Activity Quantity Year
Export: 5,338 t of ‘naphthalene’ 2015[37]
Import: 1,710 t of ‘naphthalene’ 2015[37]
t = tonne

Environmental Exposures Overview

The general population’s major source of exposure to naphthalene is indoor air.[38] Exposure in indoor air occurs mainly by inhaling naphthalene-containing moth repellents and tobacco smoke.[1,39] Other sources of inhalation exposure include: driveway sealants, fuel additives, paints, epoxies, some hydrocarbon solvents, attached garages, and pesticides.[38,39,40,41] Systematic indoor air sampling of naphthalene has not been conducted in Canada, but numerous studies have evaluated levels of naphthalene in indoor air in specific Canadian cities.[42,43] Additional sources of naphthalene in ambient air include combusting organic material, coal and oil, forest fires, wood preserving operations, asphalt industries, and power plants.[4,44] Air emissions account for 92% of total naphthalene released to the environment.[44]

Dermal exposures from products treated with mothballs (blankets, clothing etc.) can be significant.[4] Ingestion exposure to naphthalene is also possible through contaminated drinking water and food.[4] Although naphthalene is not permitted as a food additive in Canada, as of 2008 it was used as a solvent in coatings for food packaging.[32] Small amounts of naphthalene used in food packaging may migrate into food.

Naphthalene levels in water, soil, and sediment tend to be low except in close proximity to point sources, where there is potential for contamination.[4] Naphthalene evaporates and degrades quickly, and is not expected to bioaccumulate.[4]

Searches of Environment Canada’s National Pollutant Release Inventory (NPRI) and the US Household Products Database yielded the following results on current potential for exposure to naphthalene in Canada:

NPRI and US Household Products Database

NPRI 2015[45]
Search Term: ‘naphthalene’
Category Quantity Industry
Released into Environment 60 t Oil and gas extraction, petroleum and coal product manufacturing, pulp and paper mills, chemical manufacturing, iron and steel mills and manufacturing (90 facilities)
Disposed of 137 t
Sent to off-site recycling 654 t
t = tonne
US Household Products 2016[46]
Search Term: ‘naphthalene’
Quantity Product Type
103 Gasoline additives and fuel injector cleaners, ceramic paints, pesticides/repellents, and oil products

Occupational Exposures Overview

Inhalation and dermal contact are the most important routes of occupational exposure to naphthalene.[1,47]

CAREX Canada estimates that approximately 8,500 Canadians are exposed to naphthalene in their workplaces. The largest industrial groups exposed are in alumina/aluminum production and processing, petroleum and coal products manufacturing, and wood preservation. Other industries that may be exposed to naphthalene include coal tar and coke industries, as well as construction industries (paving and roofing).[1]

The largest occupational groups exposed to naphthalene are petroleum gas and chemical process operators, followed by machine operators in mineral and metal processing, and labourers in mineral and metal processing. Other workers may be exposed while producing mothballs, grinding wheels, and working with petroleum products, especially jet fuels.[47,48]

For more information, see the occupational exposure estimate for naphthalene.

Sources

1. International Agency for Research on Cancer (IARC). Monograph summary, Volume 82 (2002) (PDF)
2. US National Library of Medicine. Hazardous Substances Data Bank (HSDB) (Search term: “Naphthalene”)
3. National Toxicology Program (NTP). 14th Report on Carcinogens for Naphthalene (2016) (PDF)
4. Agency for Toxic Substances and Disease Registry (ATSDR). Toxicological Profile for Naphthalene (2005) (PDF)
8. Government of Newfoundland and Labrador. Regulation 5,12 Occupational Health and Safety Regulations (2012)
9. Government of the Northwest Territories. Occupational Health and Safety Regulations, R-039-2015 (2016) (PDF)
11. The Canadian Legal Information Institute (CanLII). Government of Nunavut’s Occupational Health and Safety Regulations, Nu Reg 003-2016 (2010)
14. Government of Prince Edward Island. Occupational Health and Safety Act Regulations Chapter 0-1 (2013) (PDF)
16. Government of Saskatchewan. The Occupational Health and Safety Regulations, 1996 (2016) (PDF)
17. The Canadian Legal Information Institute (CanLII). Yukon’s Occupational Health Regulations, O.I.C. 1986/164 (2012) (PDF)
18. Occupational Safety and Health Administration (OSHA). Annotated PELs (2018)
20. Health Canada. Cosmetic Ingredient Hotlist (2014)
22. Ontario Ministry of the Environment and Climate Change. Ontario’s Ambient Air Quality Criteria (2016)
23. Alberta Environment and Parks. Ambient Air Quality Objectives (2017)
24. TGovernment of British Columbia. Contaminated Sites Regulation B.C. Reg. 375/96 (2017)
27. The Canadian Legal Information Institute (CanLII). Ontario Drinking Water Quality Standards, O Reg 169/03 (2017)
31. Environment and Climate Change Canada. Toxic Substances List -CEPA Schedule 1 (2011)
32. Environment and Climate Change Canada. Proposed Risk Management Approach for Naphthalene (2008)
33. Canadian Council of Ministers of the Environment (CCME). National Classification System for Contaminated Sites (2008) (PDF)
37. International Trade Centre. TradeMap (Free subscription required)
38. Health Canada. Naphthalene in Indoor Air (2013) (PDF)
39. Jia C, Batterman S.“A critical review of naphthalene sources and exposures relevant to indoor and outdoor air”Int J Environ Res Public Health 2015;7(7):2903-2939.
41. US Environmental Protection Agency (EPA). IRIS Toxicology Review of Naphthalene (1998) (PDF)
42. Wheeler AJ, Fellin P, Li H, Gibson MD, Guernsey JR, Ryswsk KV, Marro L, Masoud H, Sutcliffe R, Héroux MÈ. “Optimization of a passive sampling method for determination of airborne naphthalene for residential indoor air monitoring”In: Proceeding of the 12th International Conference on Indoor Air Quality and Climate 2010.
43. Kindzierski W, Chui P, Li X, Ryswyk KV, Wheeler AJ, Héroux MÈ, Marro L, Fellin P. “Characteristics of naphthalene and its sources in Edmonton, Alberta residences during winter and summer 2010”In: Proceeding of the 12th International Conference on Indoor Air Quality and Climate 2010.
45. Environment and Climate Change Canada. National Pollutant Release Inventory (NPRI) Facility Search (Substance name: ‘Naphthalene’)
46. US Household Products Database (HPD). Household Products (Search term: ‘Naphthalene’)
47. Scientific Committee on Toxicity Ecotoxicity and The Environment (CSTEE). Opinion on the results of the Risk Assessment of Naphthalene Report Version (Human Health): Final Report (2001) (PDF)
48. Price PS, Jayjock PA. “Available data on Naphthalene Exposures: Strengths and Limitations”. Regul Toxicol Pharmacol2008;52(2):15-21.
