Overview

CAREX Canada estimates that approximately 333,000 Canadians are exposed to welding fumes in their workplaces. The industries with the highest number of exposed workers are building equipment contractors, commercial and industrial machinery and equipment, and automotive repair and maintenance.

READ MORE...

The largest occupational groups exposed to welding fumes are welders and related machine operators, construction trades helpers and labourers, and automotive service technicians, truck and bus mechanics, and mechanical repairers. The magnitude of exposure to welding fumes is influenced by many factors, including:[1,2,3]

  • The type of welding process (e.g. arc or gas welding)
  • The composition of the welding rod
  • The type of filler materials and base metals used
  • The type of coatings present
  • The setting in which welding is performed (e.g. open area or a confined space)
  • Type of ventilation in the workspace (e.g. mechanical, local, natural or no ventilation)
  • The work practices of the welder (e.g. use of personal protective equipment, removal of coatings, cleaning surfaces, working upwind when welding outdoors)

According to the Burden of Occupational Cancer in Canada project, occupational exposure to welding fumes and welding lead to approximately 310 lung cancers and 15 ocular melanomas each year in Canada respectively, based on past exposures (1961-2001).[4,5] This amounts to 1.3% of lung cancer cases and 5.4% of ocular melanomas diagnosed annually. Most occupational lung cancers associated with welding fumes occur among workers in the manufacturing sector. These cancers also occur among workers in the trade, other services, and construction sectors. Work-related exposure to welding fumes resulted in approximately $308 million in costs for newly diagnosed lung cancer cases in 2011.[5]

Prevalence Estimate

Results show that approximately 333,000 Canadians are potentially exposed to welding fumes in their workplaces; 93% of these workers are male. The top three industries with the highest number of exposed workers are building equipment contractors, commercial and industrial machinery and equipment, and automotive repair and maintenance. The three largest occupational groups exposed to welding fumes are welders and related machine operators (97,000 workers exposed), construction trades helpers and labourers (30,000 workers exposed), automotive service technicians, truck and bus mechanics, and mechanical repairers (24,000 workers exposed), and construction millwrights and industrial mechanics (18,000 workers exposed).

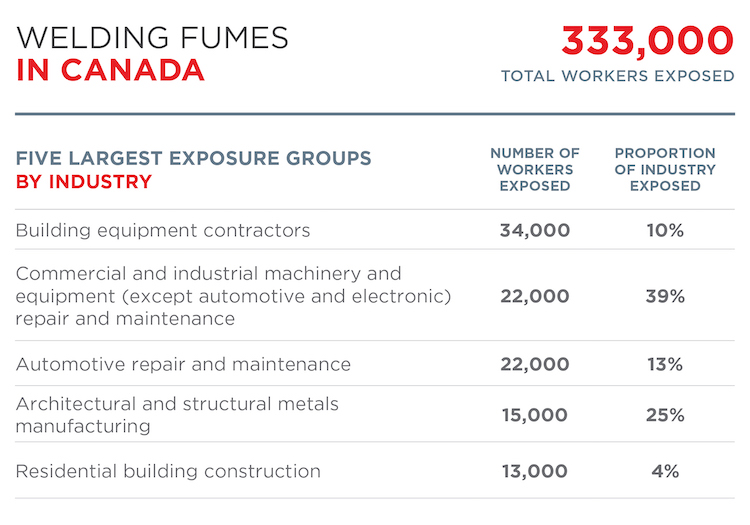

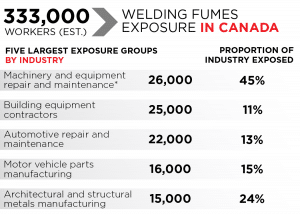

Workers exposed to welding fumes by industry in 2016

Workers exposed to welding fumes by region in 2016

Click the second tab to view total number of workers exposed.

Level of Exposure

In total, approximately 333,000 Canadians are exposed to welding fumes in their workplaces, with the majority of workers falling into the high (186,000) and moderate (106,000) exposure categories.

Workers exposed to welding fumes by exposure level in 2016

Level of exposure by industry

Identifying industries with either 1) workers exposed to high levels of welding fumes or 2) a larger number of workers exposed to welding fumes is important in guiding cancer prevention efforts to prioritize exposed groups and target resources most effectively.

The table below shows the number of workers exposed by industry group and level of exposure to welding fumes. These results highlight industries with the most number of workers, as well as industries with the highest levels of exposure. For welding fumes, the industries with the largest number of workers also have the majority of workers exposed at the highest exposure category. Depending on the goals of a prevention campaign, exposure reduction in the large industrial group might be a useful strategy, or reducing exposure to those at highest risk of exposure could be seen as a priority.

Workers exposed to welding fumes by exposure level and industry in 2016

*Numbers may not add up due to rounding
Methods and Data

Our Occupational Approach page outlines the general approach used to calculate prevalence and exposure level estimates for workplace exposures.

Data Sources

Data used in developing the occupational estimates for welding fumes were collected from several sources:

  1. The Canadian General Population Job-Exposure Matrix (CANJEM), which was built from expert evaluations of occupational exposures in four case-control studies conducted from the mid-1980s up to 2010 in the greater Montreal area. Approximately 10,000 individuals were evaluated by experts who assigned exposures based on descriptions of work tasks, processes, work environment, and exposure control measures.
  2. The European Community Respiratory Health Survey (ECRHS), which was a large study that looked at geographical variation in asthma and allergy in adults. The database includes information on ∼140,000 individuals from 22 (mainly European) countries.
  3. Scientific peer reviewed publications that addressed welding fume exposure in the workplace.
  4. Grey literature including technical reports from governments and international bodies.

Prevalence Estimate Method

CAREX defines exposure to welding fumes as inhalation to welding fumes at work above levels expected to be encountered in the general environment (e.g. a bystander near an open construction site where welding activities are performed).

To determine the number of workers potentially exposed to welding fumes at work, CAREX occupational exposure experts used methods previously established in other peer-reviewed CAREX projects in Europe. A series of steps were taken to assign exposure proportions to occupations and industries at risk of exposure to welding fumes.

  1. Occupations and industries at risk of possible exposure to welding fumes were identified using any combination of data sources described above.
  2. The total number of workers in each identified occupation and industry intersection was obtained from Statistics Canada 2016 census data.
  3. A percentage of workers exposed was assigned to that occupation and industry intersection. Percentages were determined by consultation with existing evidence in the data sources, previously established methods from the Europe CAREX estimates and the expert judgement of CAREX occupational hygienists.
  4. The number of workers in the identified group is multiplied by the assigned percentage to calculate the prevalence estimate of workers exposed to welding fumes.



Exposure Level Method

There was not sufficient exposure measurement data in CWED to use our traditional Occupational Approach. Therefore, we used a modified approach to generate estimates of the level of exposure to welding fumes. This involved using expert judgment of occupational hygienists to assign each job category into one of the following groups:

  • High – main job duties include welding more often than not.
  • Moderate – main job duties include welding intermittently or working in close proximity to welding activities often.
  • Low – main route of exposure is via bystander effect, such as working near welding activities more often than not (e.g. near a welding bay).



Sources

1. Canadian Centre for Occupational Health and Safety. Welding – Fumes and Gases (2018)
3. WorkSafeBC. Welding gases & fumes (2019)
4. Labrèche F, Kim J, Song C, Pahwa M, Calvin BG, Arrandale VH, McLeod CB, Peters CE, Lavoué J, Davies HW, Nicol AM. “The current burden of cancer attributable to occupational exposures in Canada.” Prev Med 2019;122:128-39.
5. Occupational Cancer Research Centre. Burden of Occupational Cancer (2017)
